BondorPanel® is purpose designed for cold storage and controlled environments as a lightweight, high performing EPS-FR insulated walling panel manufactured exclusively using BlueScope COLORBOND® Permagard® steel specifically used for cold storage, cool rooms, food handling, laboratory and clean room facilities.

BondorPanel® with Permagard® steel incorporates antibacterial product protection that actively helps reduce the risk of cross-contamination.  It inhibits the growth of surface bacteria that may cause odours, stains and cross-contamination. This antibacterial product protection complies fully with the relevant US, EU and Australian standards. By specifying BondorPanel® with COLORBOND® Permagard® steel you will ensure your hygiene sensitive areas receive proven antibacterial protection.

BondorPanel® is made to measure, then assembled on-site. Easy handling and quick, simple installation keep construction time to a minimum. BondorPanel® EPS-FR panel is ideal for a range of applications, from long spanning cold storage facilities to clean rooms, portable cold storage containers and transportable buildings.

This product is BCA Compliant.

Thickness / R-Values

Thickness 50 75 100 125 150 200 250
R-Values 1.32 1.92 2.63 3.29 3.95 5.26 6.58

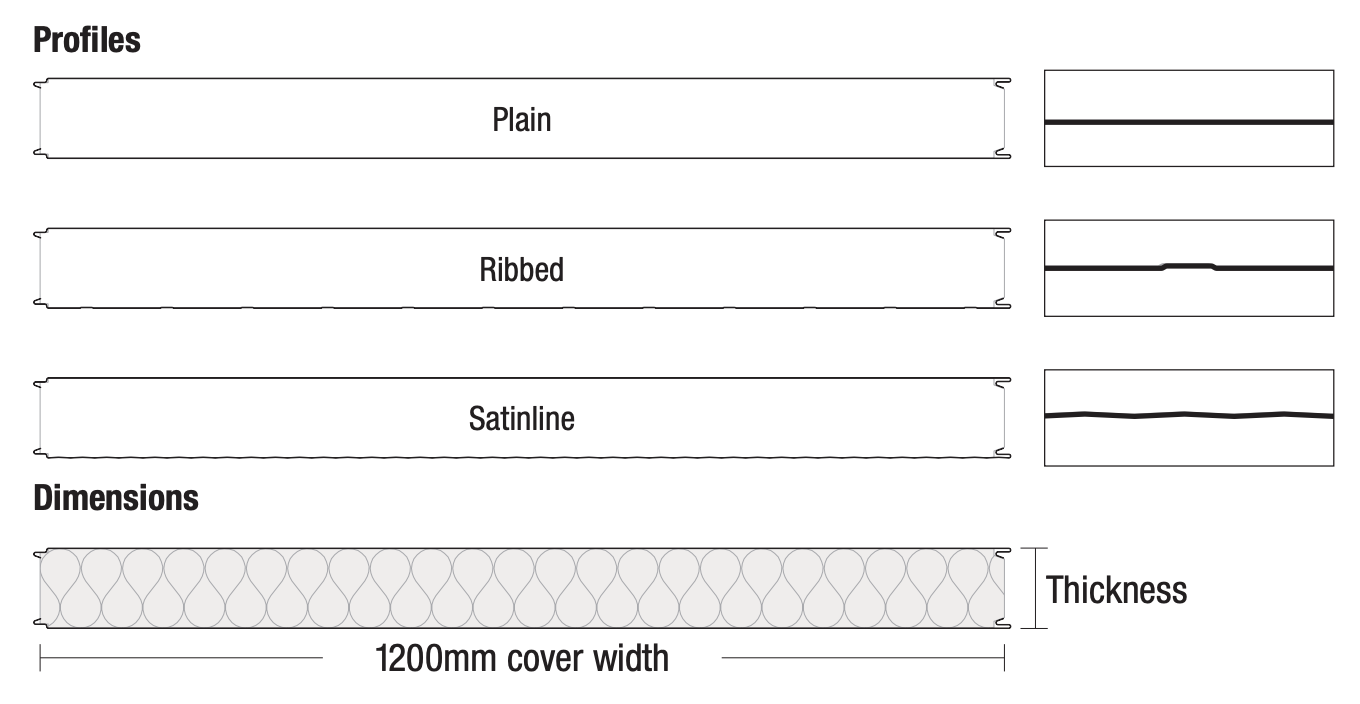

Panel Profiles

BondorPanel® profiles

The statements, information, and opinions quoted are provided by the featured supplier. BlueScope Steel Limited does not warrant the accuracy or currency of the content and is not responsible or liable for content provided by third parties

BondorPanel® EPS-FR

Contact Bondor

Product detail

Availability
ACT
NSW
NT
QLD
SA
TAS
VIC
WA
Product availability is indicative, contact Bondor directly to confirm availability.
Coverage
1200mm
Profile dimensions

Material Choices

Materials Gauges
Colour Palette: Dune®; Permagard® White; Shale Grey™; Paperbark®; Pale Eucalypt®; Classic Cream™

COLORBOND® steel

  • Contact Manufacturer

COLORBOND® Permagard® steel

  • Contact Manufacturer

Literature

Renders - Flat Colour Swatches
