InsulWall® is load bearing insulated wall panel, developed in conjunction with BlueScope and Dulux Acratex to offer the residential and commercial market a new building technology as an alternative to monolithic traditional building methods. This simple, all-in-one product uses a prime coated BlueScope steel technology, ready-made for painting, rendering or cladding encasing a high performing insulated core.

InsulWall® offers unique features such as a preformed rebated joint for setting plaster and delivering a continuous coated surface for painting internally using Dulux Wash & Wear and rendering externally using Dulux Acratex. InsulWall® electrical service ducts for easier roughing in of electrical wiring. As part of the Quicker, Leaner, Smarter, Greener patented InsulLiving® building system, InsulWall® provides an alternative building method to conventional builds which incorporate multiple layers and trades; brick veneer, timber/steel framed systems, insulation and plasterboard.

This product is BCA Compliant.

Thickness / R-Values

Thickness 90 140
R-Values 2.35 3.69

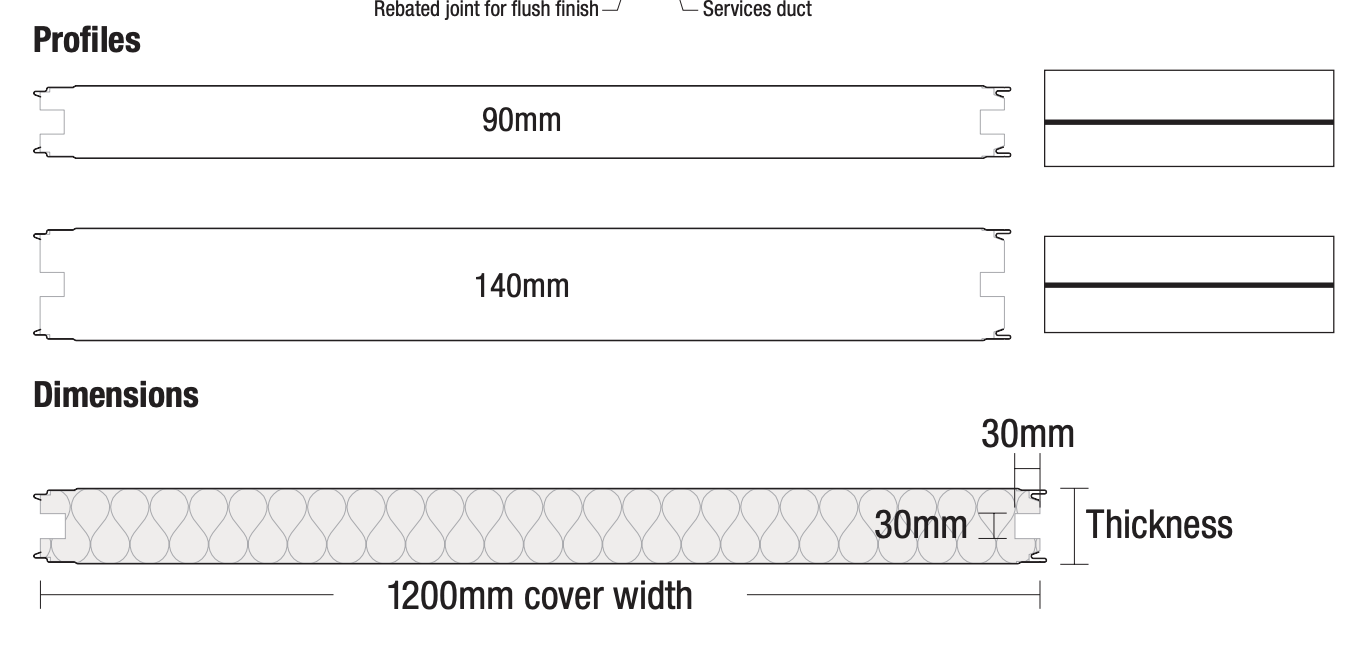

Panel Profiles

InsulWall® profiles

The statements, information, and opinions quoted are provided by the featured supplier. BlueScope Steel Limited does not warrant the accuracy or currency of the content and is not responsible or liable for content provided by third parties

Bondor InsulWall® EPS-FR

Contact Bondor

Product detail

Availability
ACT
NSW
NT
QLD
SA
TAS
VIC
WA
Product availability is indicative, contact Bondor directly to confirm availability.
Cover Width
1200mm
Profile dimensions

Material Choices

Materials Gauges
